easyRadio Breakout Boards
Quick & Easy Testing of eRA & eRIC modules.
The BOB (Breakout Board) allows the quick and easy testing and evaluation of eRIC & eRA modules for which these boards are intended.
Key Features of the eRIC Breakout Board
- Size: 67 x 20 x 5mm.
- Pinout: 12 x 2 DIL on 0.5" pitch.
- Pin pitch: 0.1".
- The assembly ‘breaks out’ the 5 x 7 pins of the eRIC RF Transceiver to a more convenient 2 x 12 x 0.1” pitch DIL pinout that matches commercial prototype breadboards.
- Antenna connection is via an SMA Jack connector or alternatively the on-board eRIC UFL RF connector.
- A supplied jumper optionally connects the eRIC Frequency Select Pin (14) to 0V Gnd setting the eRIC9 version module to a base operating frequency of 915MHz and restricting operation to meet FCC (USA) requirements.
Part Number |
Frequency |
Download |
|
eRIC4-BOB |
434 MHz |
|
|
eRIC9-BOB |
868 / 915 MHz |
The board eRIC BOB is supplied with either an eRIC4 or eRIC9 module fitted together with a matching 434MHz or an 868 / 915 MHz antenna.
Relevant to eRIC Breakout Boards

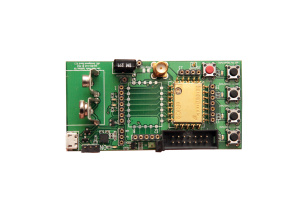

eRIC RF Evaluation Kit's
