eRIC USB Pi Dongle

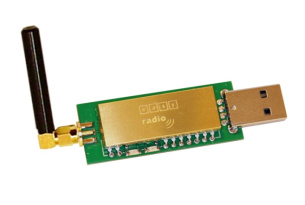

eRIC Pi Compatible USB Dongle
This lower-cost Connect2Pi USB Dongle provides a simple wireless bridge between Raspberry Pi (Pi2Pi), a Raspberry Pi and a PC, or any device that supports USB serial communications.
Key Features of the eRA Connect2 Pi Dongle
- Bi-directional link, no RF protocol software required.
- USB Connection. ‘Plug & Play’ operation, appears as a ‘Com’ port.
- Low current consumption. Can be powered directly from Raspberry Pi.
- Integral SMA Antenna connector allows use of extension for optimal antenna position.
- FTDI FT232 USB IC.
- Linux & Windows drivers available.
- Transmit & receive LEDs for diagnostics.
- Configurable RF parameters (optional)- fine tune for optimum performance.
- Up to 180 Bytes per packet, ideal for ‘Sense & Control’ applications.
- Built-in temperature sensor, usable by host program.
Part Number |
Frequency |
Download |
|
eRIC4-USB |
434 MHz |
|
|
eRIC9-USB |
868 / 915 MHz |
eRA (easyRadio Advanced) Dongles are available for two regions: eRIC4 for European 433/4MHz licence exempt ISM band, eRIC9 dual band for European 868MHz and USA 902 - 928 MHz licence exempt ISM bands.
More About eRA Conenct2-Pi USB Dongles
These devices provide considerably greater range and less power consumption than similar Wi-Fi or Bluetooth dongles operating in the overcrowded 2.4GHz bands. Frequency, bandwidth, power output and data rate can (optionally) be configured to allow multiple devices to communicate free from interference from each other and any other RF devices.
Host devices can send and receive (half duplex) up to 180 Bytes of data per packet that will be seamlessly delivered and presented to other hosts within range. There is no need for any complicated ‘bit balancing’ or elaborate coding schemes. Easy Data In and Data Out!
Applications: RF Communications, Wireless, Sensing & Instrumentation.
