eRA Connect2 Pi
Pi-Compatible RF USB Dongle
The longer-range narrowband eRA Connect2-Pi RF Dongle provides a simple wireless bridge between Raspberry Pi (Pi2Pi), a Raspberry Pi and a PC, or any device that supports USB serial communications.
Key Features of the eRA Connect2 Pi Dongle
- Data Rate Max: 115.2Kbps.
- Sensitivity: -107dBm.
- Supply Voltage Max: 5V.
- Transmit Power: 5mW.
- Module Interface: USB.
- No RF protocol software required.
- Simple plug & play operation.
- Low current consumption, powered directly from Raspberry Pi.
- Integral SMA antenna connector allows use of extension for optimal antenna position.
- Transmit & receive LEDs for diagnostics.
- Configurable RF parameters - fine tune for optimum performance.
- Up to 180 Bytes per packet - Ideal for ‘Sense & Control’.
- Built-in temperature sensor usable by host program.
Part Number |
Frequency |
Download |
|
eRA-Connect2-Pi-400 |
434 MHz |
|
|
eRA-Connect2-Pi-900 |
868 / 915 MHz |
eRA (easyRadio Advanced) Dongles are available for two regions: eRIC4 for European 433/4MHz licence exempt ISM band, eRIC9 dual band for European 868MHz and USA 902 - 928 MHz licence exempt ISM bands.
More About eRA Conenct2-Pi USB Dongles
This RF USB Dongle utilises LPRS’ proprietary easyRadio technology providing a simple wireless bridge between Raspberry Pi (Pi2Pi), a Raspberry Pi and a PC or any other device that supports USB serial communications. A bidirectional link is created with the easyRadio Advanced RF transceiver modules; no RF protocol software is required.
A greater range and lower power consumption can be achieved with these RF dongles compared to a similar Wi-Fi or Bluetooth device operating in the overcrowded 2.4GHz frequency band. Frequency, bandwidth, power output and data rate can (optionally) be configured to allow multiple devices to communicate free from interference from each other and any other RF devices.
Host devices can send and receive (half duplex) up to 180 Bytes of data per packet that will be seamlessly delivered and presented to other hosts within range. There is no need for any complicated ‘bit balancing’ or elaborate coding schemes. Easy Data In and Data Out!
FTDI FT232 USB IC.Linux & Windows drivers available.
Applications: RF Communications, Wireless, Sensing & Instrumentation.
Relevant to eRA USB Dongles
eRA Through Hole Modules
easyRadio Advanced RF Transceiver & Transmitter Modules

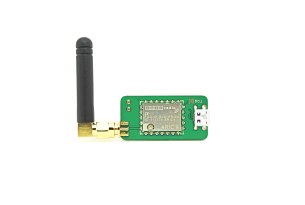

eRIC USB Pi Dongle
